Esophageal Dilator Storage
Protect with Confidence
Designed to protect and preserve the integrity of esophageal dilators and align with guidelines for proper storage.
HEPA Filters
Maintains a forced air circulation system that removes contaminants and particulates.
LED Light
The 405 nm lights help to deactivate bacteria in the closed systems.
Mobile
Safely transport dilators with vertical or horizontal wheeled carts.
Controlled Access
Enclosed doors with a lock system secure the dilators.
Limit Contamination
Designated slots prevent contact between dilators
Esophageal Dilator Storage Fact Sheet
| Part No. | Description | Dilator Capacity | Dimensions |
|---|---|---|---|
| 1214-70 | Esophageal Dilator Wall-Mount Storage Cabinet | 24 | 19"W x 4"D x 38"H |
| 1214-71 | Esophageal Dilator Horizontal Storage Cart | 72 | 41"W x 23"D x 36"H |
| 1214-72 | Esophageal Dilator Vertical Storage Cart | 72 | 24"W x 44"D x 24"H |
| Part No. | Description | Qty/Case |
|---|---|---|
| 1214-73 | HEPA Filter | 1 |
| 1214-74 | Storage Cabinet Cleaning Brush | 10 |
| 1214-75 | Soft Grip Gasket | 1 |
| 1214-76 | Fan | 1 |
| 1214-77 | Power Supply | 1 |
| 1214-78 | LED Light Strip, Single Side | 1 |
| 1214-79 | Swing Bar | 1 |
| 1214-80 | Dilator Storage Tray (Stores up to 12 Bougies/Dilators) | 1 |
Delivering Outcomes that Matter
At Diversatek Healthcare, we go beyond providing high-quality devices – we partner with physician offices, ASCs, and hospitals to empower GI professionals to improve patient outcomes. With tailored support, we focus on understanding your unique challenges and goals to help you improve procedural efficiency and achieve clinical success.
Confident
Infection Prevention for Dilator Storage
Each storage solution from Diversatek Healthcare is fully equipped with unique features that minimize cross-contamination and maintain clean conditions.
- Forced air circulation system helps to create a positive pressure environment that filters out dust and airborne particulates.
- 405 nm LED disinfecting light helps prevent bacterial and fungal accumulation on esophageal dilators.
- Individual slots securely hold each dilator, preventing direct contact and minimizing movement in our mobile storage solutions.
- Fully enclosed storage systems with sturdy doors and locking systems protect dilators and ensure controlled access.
Flexibility
Storage Systems for Esophageal Dilators

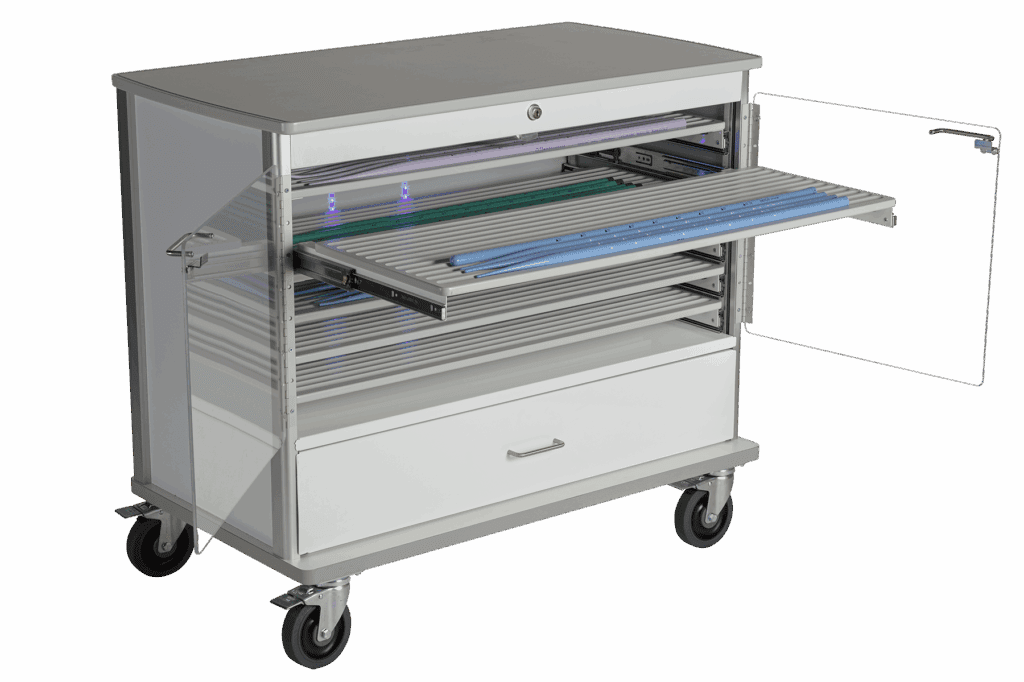

- Horizontal Storage Cart
- Holds up to 72 dilators
- 6 removable trays
- 41”W x 23”D x 36”H
- Dilators are stored in a flat, horizontal position
- Storage drawer is under the trays
- Mobile storage with industrial-grade casters
- Electronic, keyless locking system

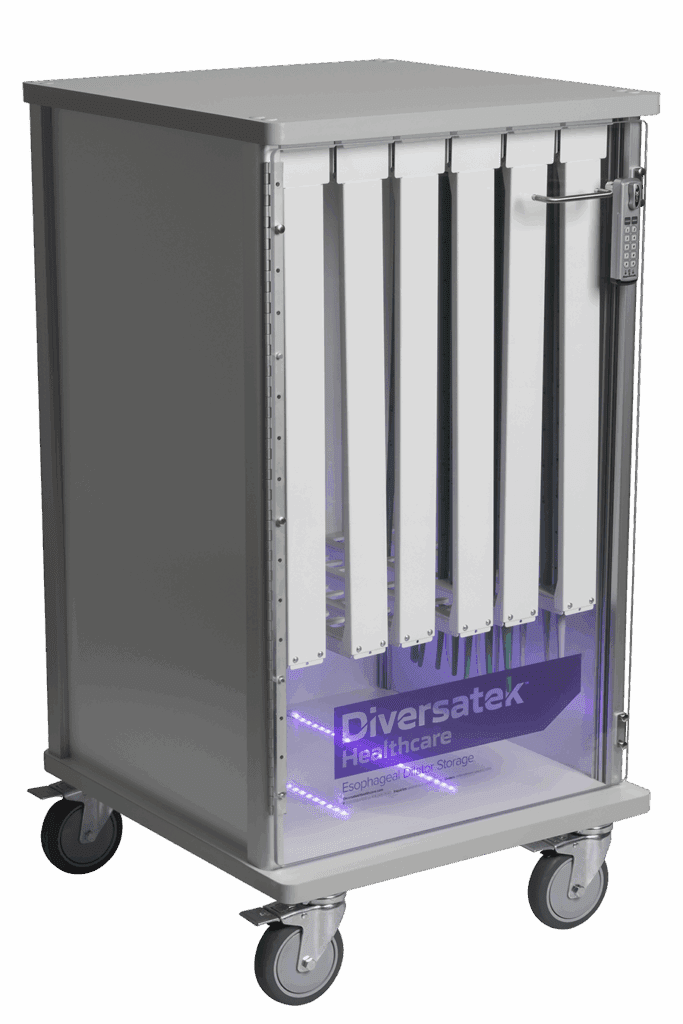

- Vertical Storage Cart
- Holds up to 72 dilators
- 24”W x 44”D x 24”H
- Dilators are hung in a vertical position
- Mobile storage with industrial-grade casters
- Electronic, keyless locking system
- Wall-Mount Storage Cabinet
- Holds up to 24 dilators
- 19”W x 4”D x 38”H
- Dilators are hung in a vertical position
- Manual key lock system

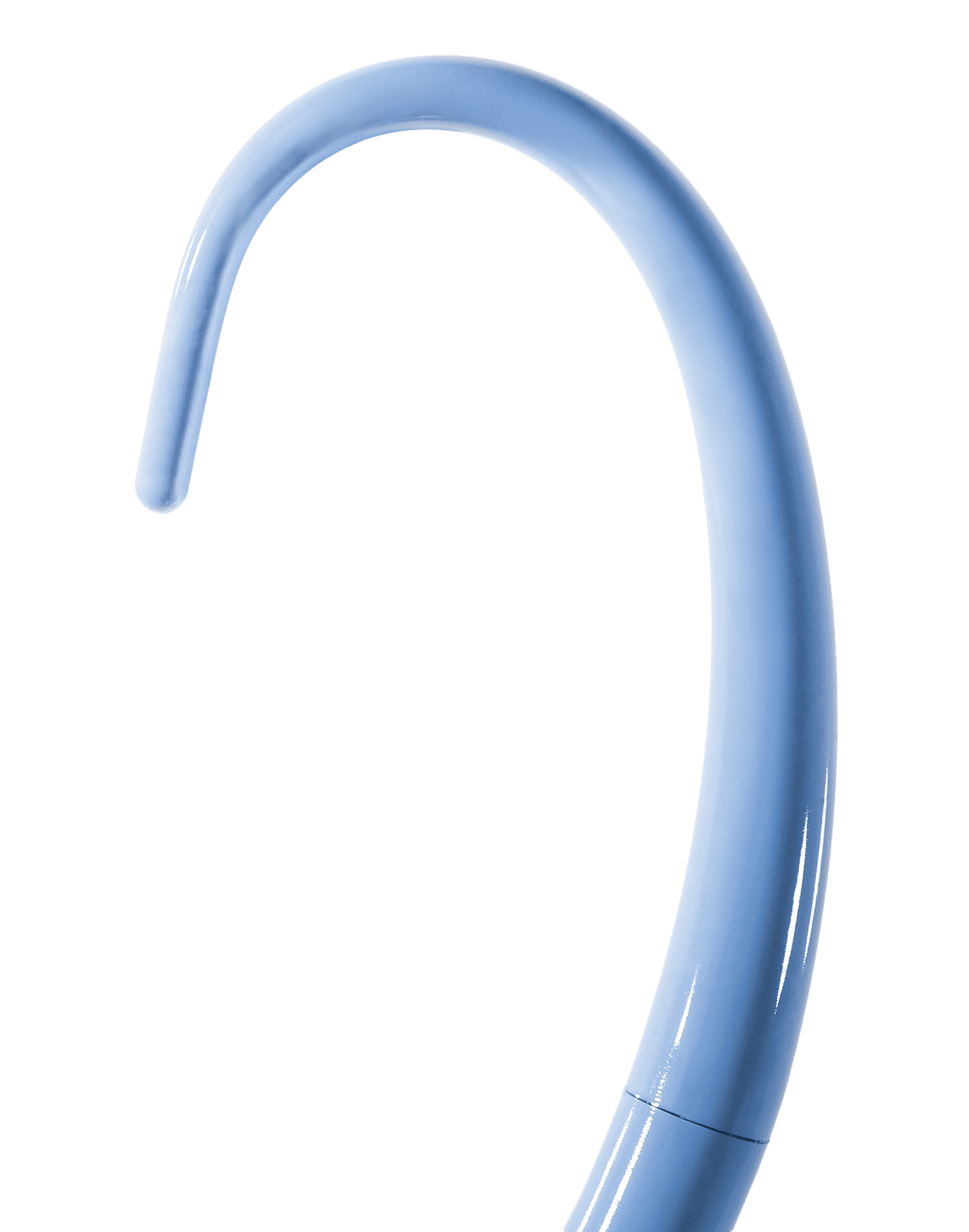

M-Flex Blue Silicone Bougies
A tungsten-filled weighted bougie with a flexible design featuring Maloney and Hurst tips for esophageal stricture management.
