Viper® 3-Stage Balloon Dilators
Controlled Dilation Starts with PET Balloon Technology
The durable strength of PET balloon material delivers optimal radial force for controlled dilation and consistent balloon expansion.
Optimal Visibility

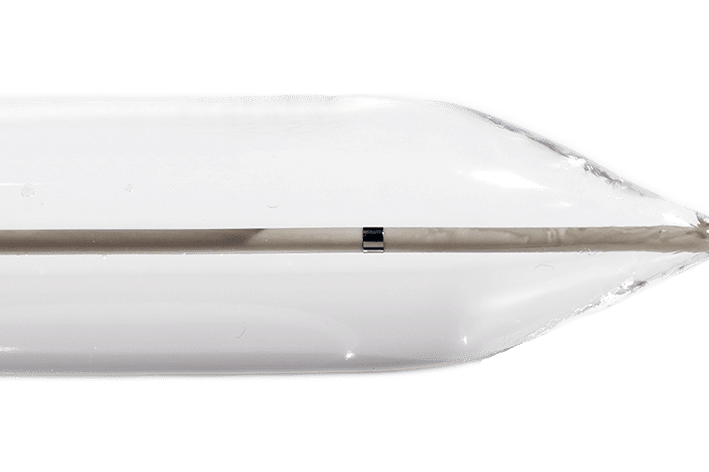

The balloon’s highly transparent material and rounded shoulders enhance visibility and promote smooth navigation throughout the GI tract.
Radial Strength
Made from high-strength PET, the balloon dilator consistently achieves three distinct inflation pressures without narrowing, ensuring uniform stricture dilation.
3-Stage Dilation
Efficiently treat strictures with three diameter sizes in a single balloon.
Reference Label
Glow-in-the-dark label offers instant pressure reference for dilation.
Viper 3-Stage Fact Sheet
| Part No. | Type | Diameter (mm) | French Size (FR) | Balloon Length (cm) | ATM Pressure | Working Length (cm) | Qty/Case |
|---|---|---|---|---|---|---|---|
| 1204-08 | Fixed Wire | 6 - 7 - 8 | 18 - 21 - 24 | 8 | 4 - 6 - 8 | 180 | 1 |
| 1204-10 | Fixed Wire | 8 - 9 - 10 | 24 - 27 - 30 | 8 | 4 - 6 - 8 | 180 | 1 |
| 1204-12 | Fixed Wire | 10 - 11 - 12 | 30 - 33 - 36 | 8 | 2 - 4 - 6 | 180 | 1 |
| 1204-15 | Fixed Wire | 12 - 13.5 - 15 | 36 - 40.5 - 45 | 8 | 2 - 4 - 6 | 180 | 1 |
| 1204-18 | Fixed Wire | 15 - 16.5 - 18 | 45 - 49.5 - 54 | 8 | 2 - 4 - 6 | 180 | 1 |
| 1204-20 | Fixed Wire | 18 - 19 - 20 | 54 - 57 - 60 | 8 | 2 - 4 - 6 | 180 | 1 |
| 1205-08 | Wire Guided | 6 - 7 - 8 | 18 - 21 - 24 | 5.5 | 4 - 6 - 8 | 240 | 1 |
| 1205-10 | Wire Guided | 8 - 9 - 10 | 24 - 27 - 30 | 5.5 | 4 - 6 - 8 | 240 | 1 |
| 1205-12 | Wire Guided | 10 - 11 - 12 | 30 - 33 - 36 | 5.5 | 2 - 4 - 6 | 240 | 1 |
| 1205-15 | Wire Guided | 12 - 13.5 - 15 | 36 - 40.5 - 45 | 5.5 | 2 - 4 - 6 | 240 | 1 |
| 1205-18 | Wire Guided | 15 - 16.5 - 18 | 45 - 49.5 - 54 | 5.5 | 2 - 4 - 6 | 240 | 1 |
| 1205-20 | Wire Guided | 18 - 19 - 20 | 54 - 57 - 60 | 5.5 | 2 - 4 - 6 | 240 | 1 |
| Part No. | Fluid Capacity | Unit |
|---|---|---|
| 1204-01 | 60 cc/mL | 5/cs |
Viper® 3-Stage Balloon Dilators
Delivering Outcomes that Matter
At Diversatek Healthcare, we go beyond providing high-quality devices – we partner with physician offices, ASCs, and hospitals to empower GI professionals to improve patient outcomes. With tailored support, we focus on understanding your unique challenges and goals to help you improve procedural efficiency and achieve clinical success.
Enhanced Deliverability
What Supports Procedural Efficiency During Fixed Wire Balloon Dilation?
With an 180 cm working length, the Viper 3-Stage Fixed Wire Balloon Dilator is designed to treat esophageal strictures.
Flexible Nitinol Wire
The Viper 3-Stage Fixed Wire Balloon Dilator features a nitinol core wire that runs the length of the catheter, supporting smooth advancement through the endoscope and across strictures for gastroenterologists. Key benefits include:
- Integrated nitinol wire helps retain the integrity of the balloon dilator
- Resists kinking to deliver consistent performance
Rapid Deflation Sleeve
A stainless-steel hypotube runs the length of the 8 cm balloon, creating a dedicated lumen for efficient air evaluation during deflation. This design:
- Promotes rapid deflation
- Helps prevent balloon pancaking
- Supports smoother and more controlled dilation of esophageal strictures
Versatile Treatment

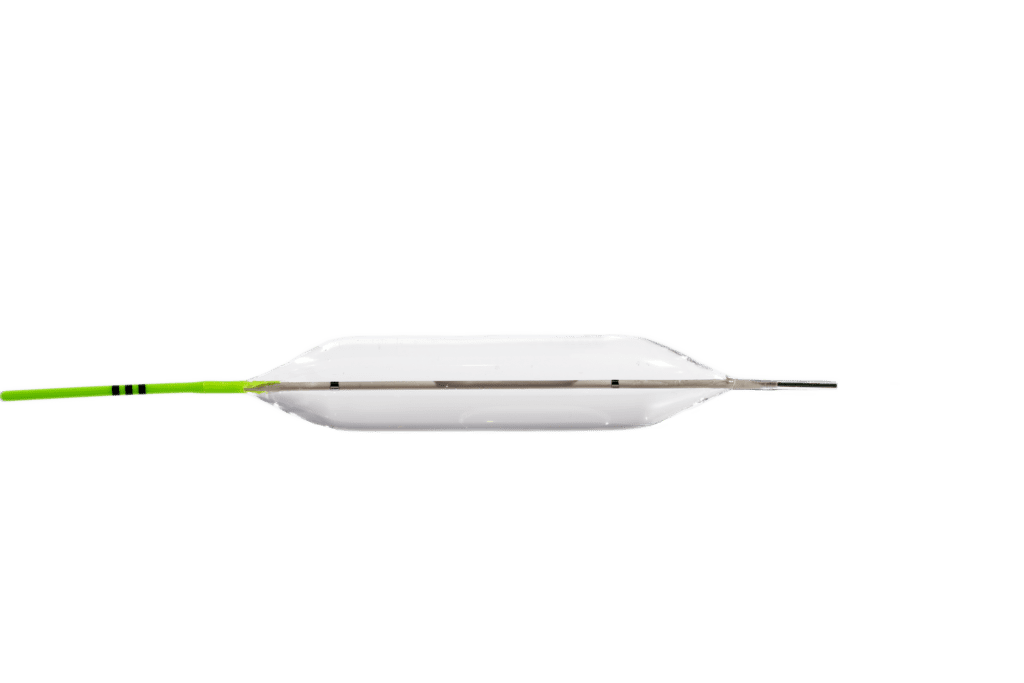

Wire-Guided Balloon Dilator with Smooth Navigation and Precise Positioning
With a 240 cm working length, the Viper 3-Stage Wire-Guided Balloon Dilator is designed to treat strictures throughout the GI tract while supporting smooth navigation and accurate positioning.

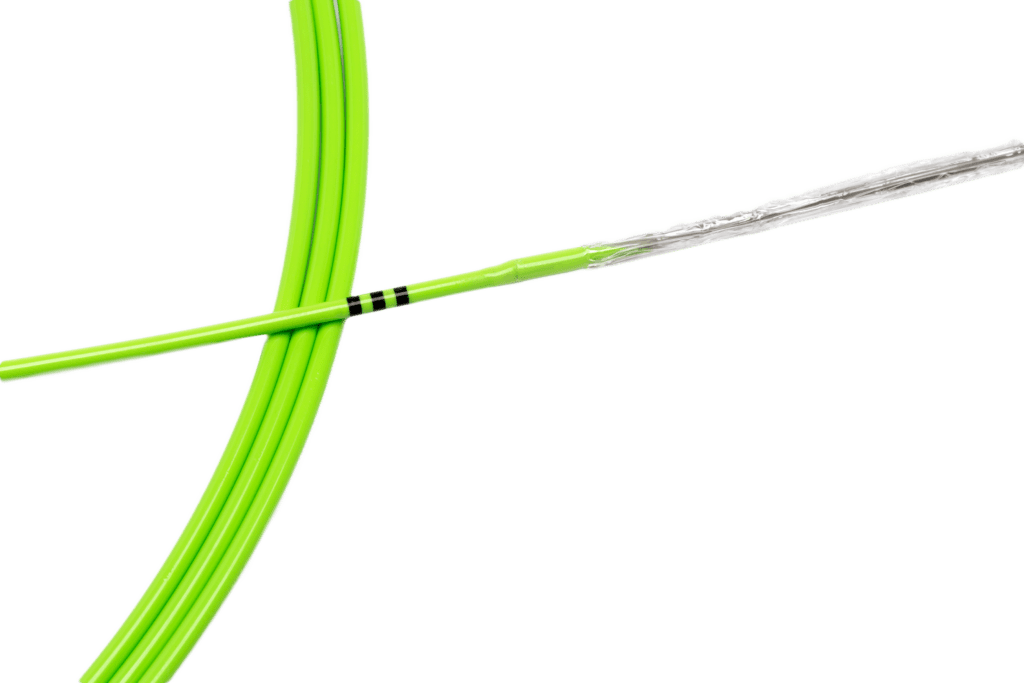

Radiopaque Marker Bands
Strategically placed radiopaque marker bands provide visual feedback to support accurate balloon placement and controlled dilation.
- Enable confident balloon positioning under fluoroscopy
- Clearly identify the 5.5 cm balloon working length across the target stricture
- Support precise esophageal stricture dilation
Atraumatic Spring Tip
The pre-loaded wire with a flexible, atraumatic spring tip helps support smooth advancement through tortuous anatomy while minimizing tissue trauma during dilator placement.
More Trusted Options for Esophageal Dilation

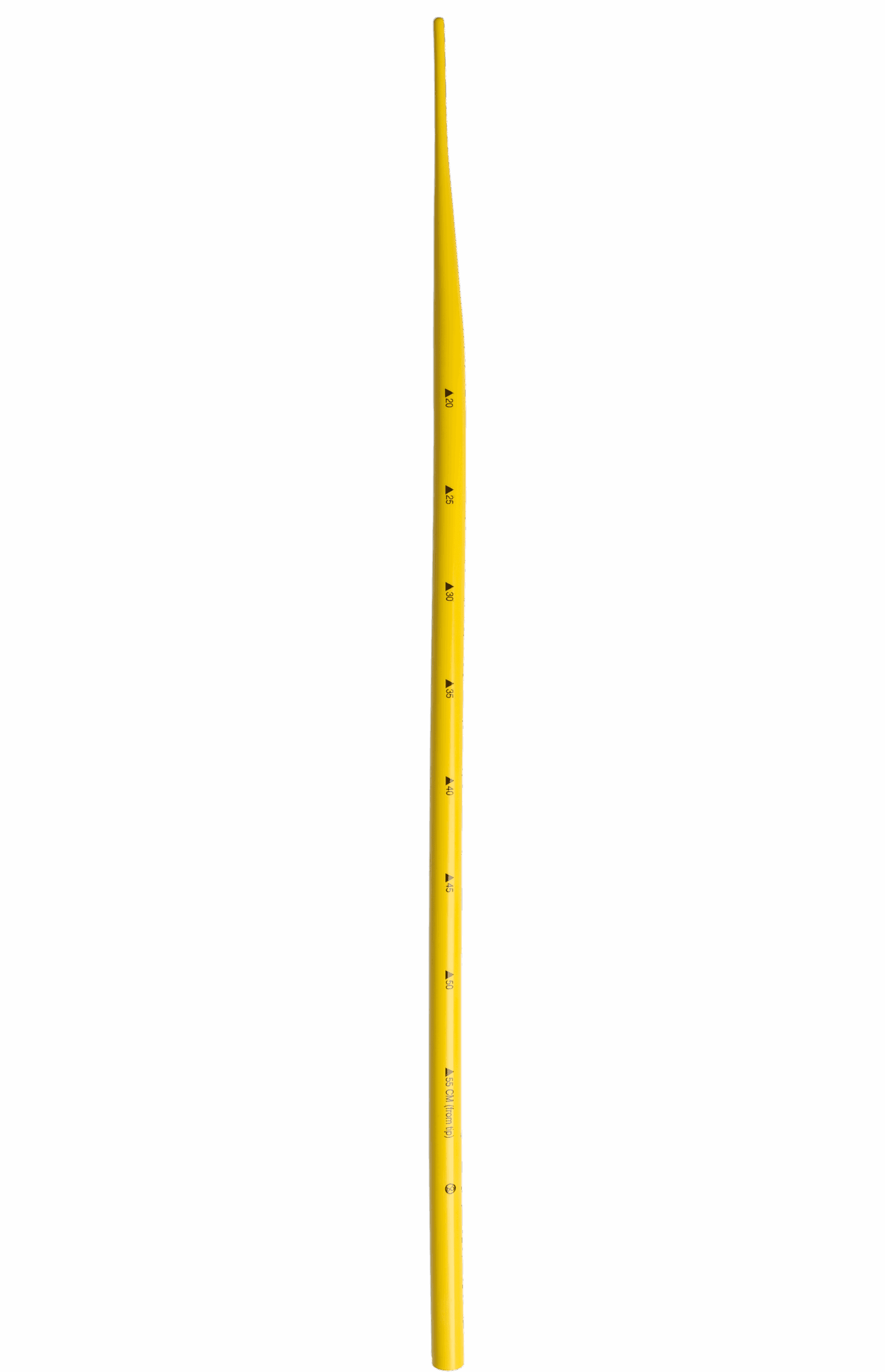

Explore our proven lineup of SafeGuide® Over the Wire (OTW) dilators available in disposable and reusable options designed with optimal flexibility and unmatched tip integrity.
Video Demonstration
Comprehensive Options for Balloon Dilation
Get a clear view of the visibility in Diversatek Healthcare’s ultra-strong PET balloon dilators. Available in fixed wire and wire-guided options, a GI practice can build a robust inventory of high-quality, reliable, and strong balloon dilators to treat the toughest esophageal strictures.
